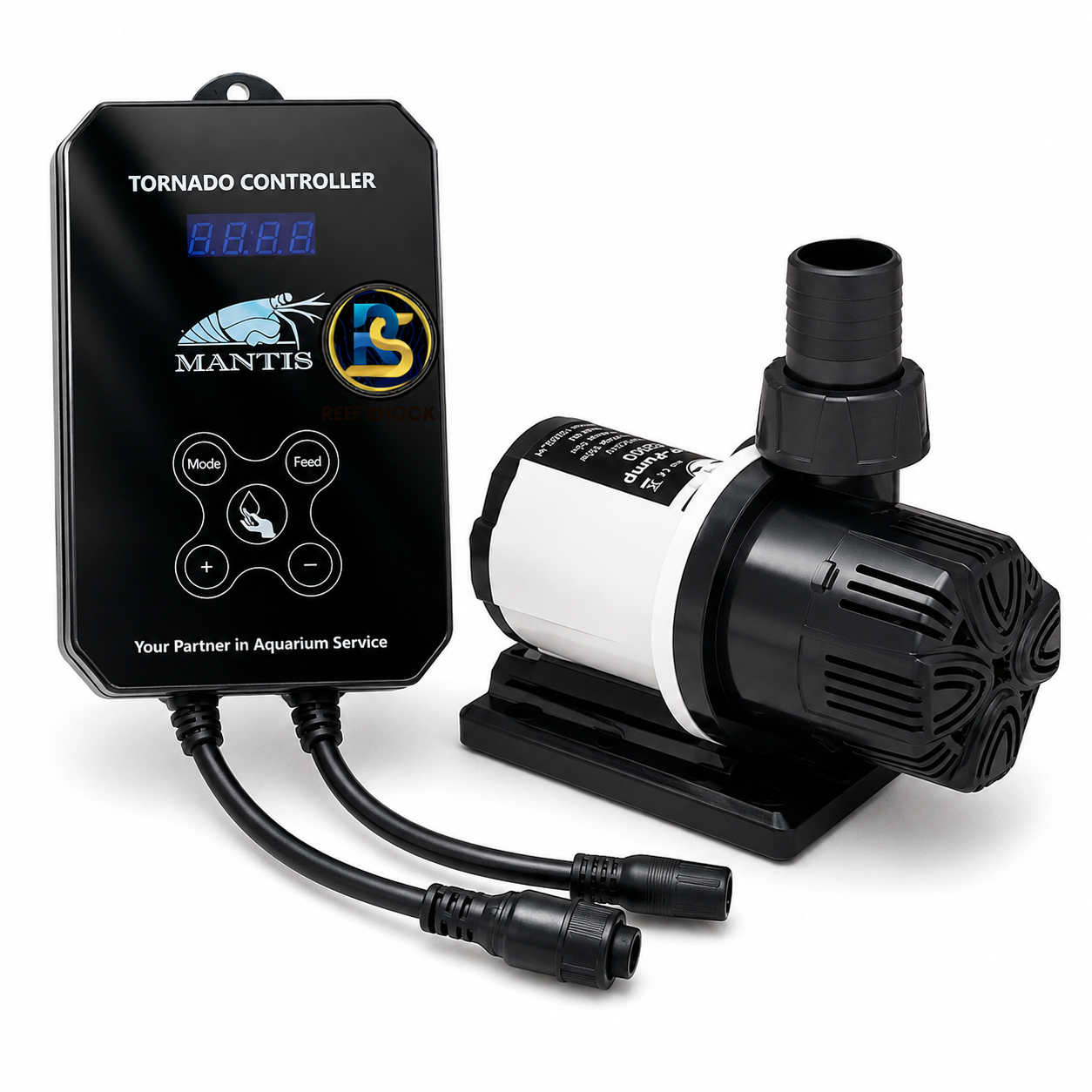

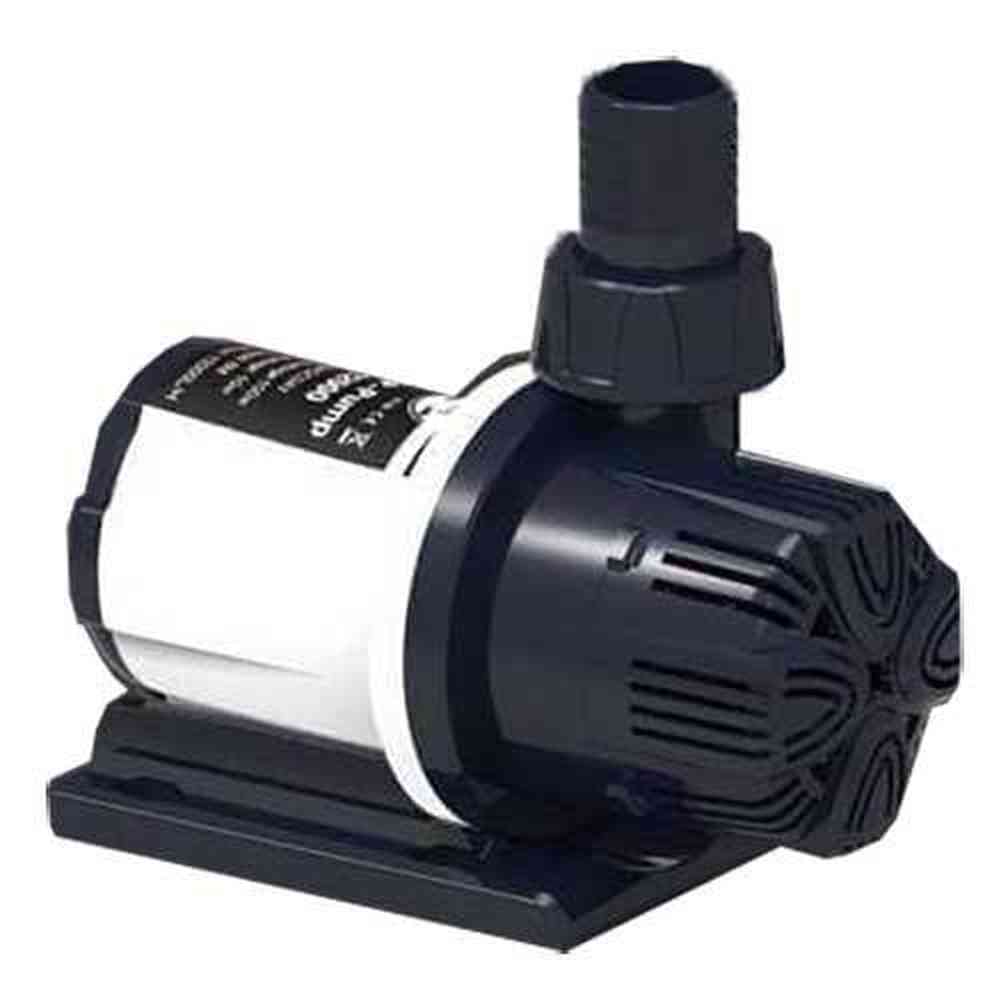

Mantis Tornado Submersible Pump 10000
The Mantis Tornado Submersible Pump 10000 is a premium DC return pump engineered to deliver powerful, energy-efficient and ultra-quiet water movement for marine, reef and freshwater aquariums. Producing up to 10,000 litres per hour with a maximum head height of 5 metres, the Tornado 10000 is an excellent choice for medium to large aquarium systems requiring dependable sump return performance, filtration and water circulation.

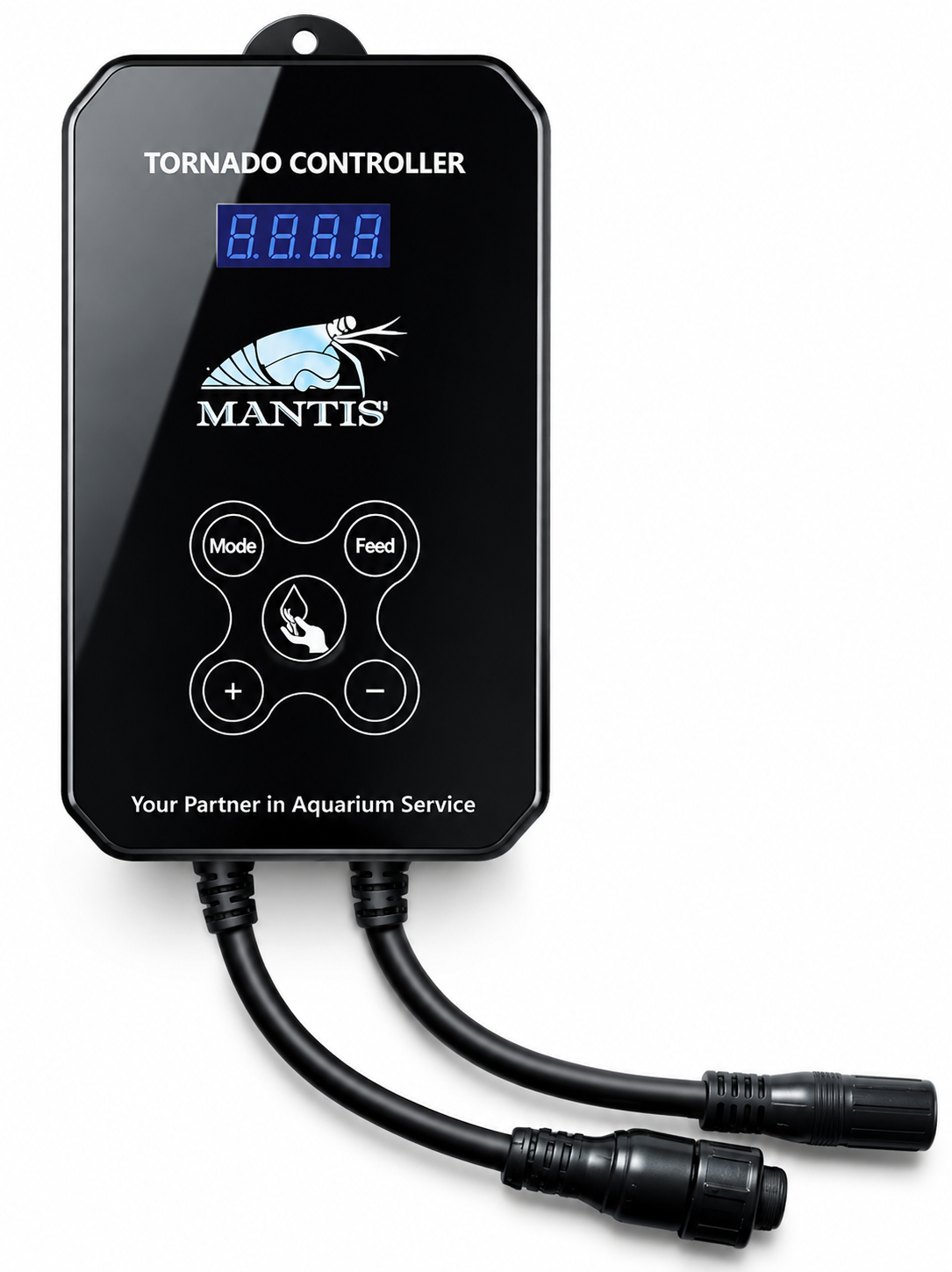

Unlike conventional fixed-speed AC pumps, the Tornado 10000 features an intelligent 20-speed DC controller, allowing you to precisely adjust water flow to suit your aquarium's plumbing, overflow and filtration requirements. By matching the pump output to your system, you can reduce unnecessary power consumption, minimise operating noise and achieve optimum filtration efficiency.
Key Features
- Maximum flow rate of 10,000 litres per hour
- Maximum head height of 5 metres
- 20-speed adjustable DC controller
- Energy-efficient 24V DC operation
- Power consumption of just 30–105 watts
- Ultra-quiet operation
- High-performance ceramic bearings for long service life
- Compact design for simple sump installation
- Suitable for marine, reef and freshwater aquariums
- Reliable continuous-duty performance
- Easy installation and maintenance
Specifications
- Model: Tornado 10000
- Pump Output: 10,000L/h
- Maximum Head Height: 5 metres
- Power Consumption: 30–105W

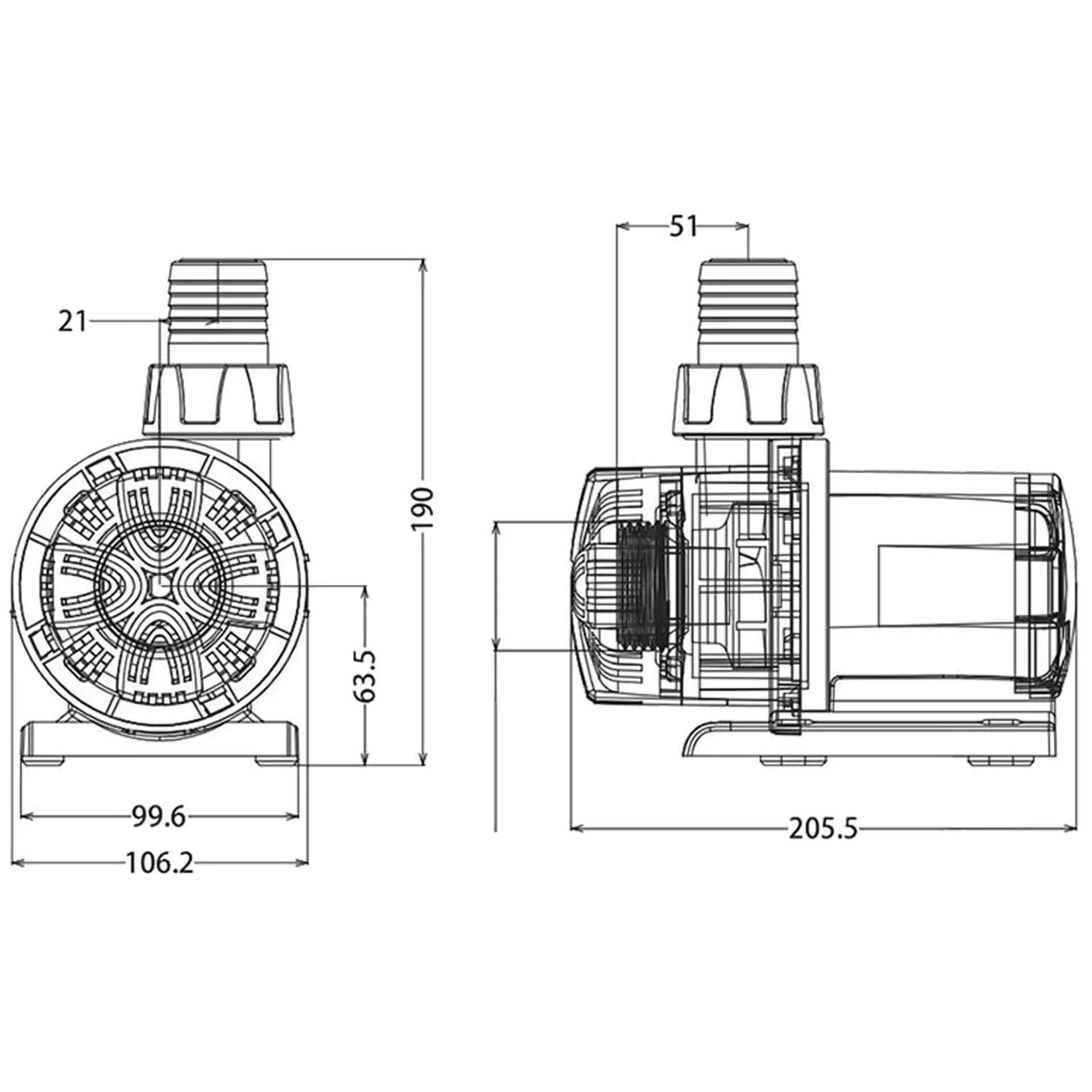

- Dimensions: 205.5 × 106.2 × 190mm
- Operation: Adjustable 24V DC
- Controller: 20 Variable Speed Settings
- Bearings: High Performance Ceramic Bearings
- Installation: Fully Submersible
- Suitable For: Marine & Freshwater Aquariums
Why Choose the Mantis Tornado 10000?
The return pump is the heart of any sump filtration system, continuously circulating water between your aquarium and filtration equipment. The Mantis Tornado 10000 has been designed to provide consistent flow, quiet operation and outstanding energy efficiency while giving you complete control over water movement.
With its adjustable controller, you can fine-tune the flow to perfectly match your overflow capacity, reduce drain noise and optimise the performance of protein skimmers, reactors and other filtration equipment. Running the pump only as fast as required also reduces electricity consumption and extends the life of the pump.
Who Is the Tornado 10000 Best Suited For?
The Tornado 10000 is ideal for medium to large marine reef aquariums, freshwater display aquariums and sump filtration systems where reliable water turnover is essential. It is particularly well suited to hobbyists wanting the flexibility of adjustable flow, allowing the pump to be matched to different plumbing layouts and filtration requirements.
Suitable Applications
- Marine aquariums
- Reef aquariums
- Freshwater aquariums
- Sump return systems
- Large filtration systems
- Media reactors
- UV steriliser feed pumps
- Aquarium circulation systems
- Water transfer applications
Choosing the Correct Return Pump
The maximum flow rating is measured under minimal head pressure. Actual water flow decreases as vertical lift and plumbing resistance increase. Pipe diameter, pipe length, elbows, valves and connected equipment all influence the final flow reaching your aquarium.
With a maximum head height of 5 metres, the Tornado 10000 provides excellent performance for a wide range of aquarium installations. Selecting an adjustable DC pump allows you to fine-tune flow to achieve the ideal balance between water turnover, filtration efficiency and quiet operation.
Maintenance
- Clean the impeller and pump housing regularly.
- Inspect the intake for debris or blockages.
- Never operate the pump without water.
- Check ceramic bearings during routine maintenance.
- Keep the controller dry and well ventilated.
Frequently Asked Questions
Is the Tornado 10000 suitable for reef aquariums?
Yes. It has been designed for marine, reef and freshwater aquariums and is ideal as a high-performance sump return pump.
Can I adjust the flow rate?
Yes. The supplied controller provides 20 adjustable speed settings, allowing precise control of water flow to suit your aquarium.
Is the pump quiet?
Yes. The DC motor and ceramic bearing design provide smooth, low-noise operation, making it suitable for display aquariums in living areas.
Can the Tornado 10000 operate continuously?
Yes. It has been designed for reliable 24-hour operation when correctly installed and maintained.
Why choose a DC return pump?
DC return pumps offer adjustable flow, lower power consumption and quieter operation compared to many traditional AC pumps, making them ideal for modern marine and freshwater aquarium systems.
Please Note
- Do not operate the pump dry.
- Actual flow will vary depending on plumbing design and head height.
- Regular cleaning will help maintain peak performance and maximise pump life.
- Select the correct pump size to suit your aquarium volume and filtration requirements.
